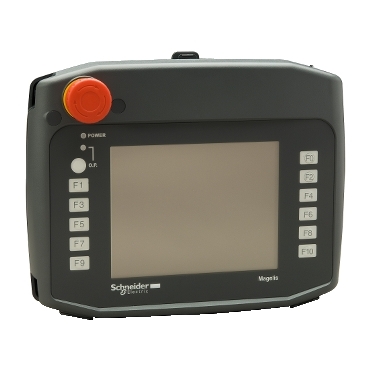

The Magelis XBT GH hand-held graphic panel meets your demand for maximum safety, integrating the best components:

• Drop resistance in accordance with IEC 1131-2

• IP65 body

• Dead-man switch (3 Safety positions for operator protection)

• Key switch to secure the terminal start-up

• Emergency stop button, IEC60947-5-1 for machines requiring a safety level up to SIL3

• High quality VGA TFT analogue colour touch screen 5.7’’, 65 k colours

• 11 function keys with insert labels

• One hand carrying capability, left or right handed

• Lightweight (1 kg max)

• Dedicated soft cable (3 or 10 m) with a junction box

• Communication interfaces with Serial line, Ethernet, USB and CF slot.

Benefits

Mobility, Operability and Safety!

• Mobility:

One soft cable providing easy and fast connection

•Operability:

One portable graphic terminal to control and maintain securely your industrial applications

• Safety:

One safety control system integrating the best technology

Applications

• Industrial Machines

• Infrastructures
