Harmony ST6

High-resolution and cost-efficient basic HMI

Part of Harmony

Harmony ST6 and STM6, Basic HMI, delivering an intuitive user experience utilizing the latest software and visualization innovations from EcoStruxure Operator Terminal Expert. Harmony STW6, Basic Web HMI, is a complement ready-to-use version available with HTML5 Browser. Edge Box HMI is affordable Box to get ready for Cloud Service thanks to the power of EcoStruxure Machine SCADA Expert software.

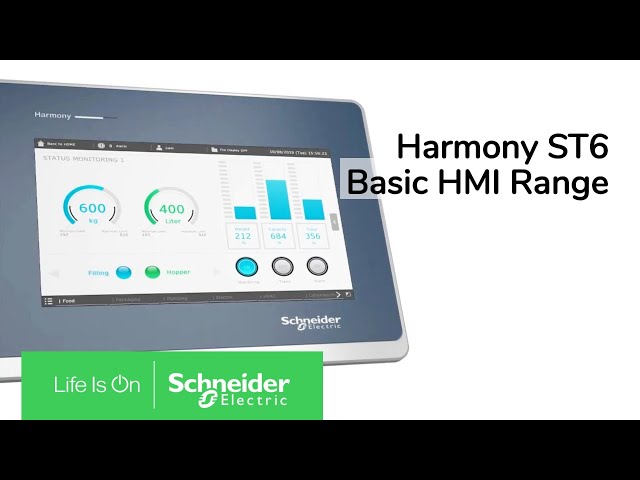

Discover Harmony ST6



About Harmony ST6

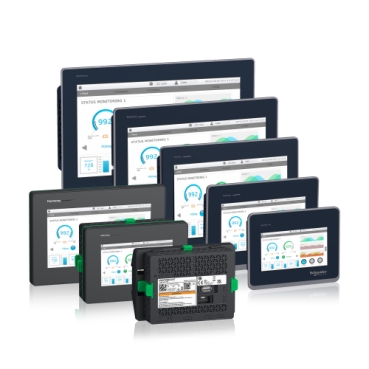

Harmony ST6 is a cost-effective and best-in-class quality HMI panel with good graphics and stylish design. It is available in three models: Basic HMI, Basic Web HMI, Basic Modular HMI.

• High-resolution widescreen format with 16M colors

• Wide range of display size: 4W to 15W

• Refined HW design with Aluminum front panel (Basic HMI, ST6)

• Unique pushbutton 22mm mounting system (Basic Modular HMI, STM6)

• Intuitive design powered by EcoStruxure Operator Terminal Expert software

• Pre-installed browser to visualize all devices with HTML5 server (Basic Web HMI, STW6)


Benefits of Harmony ST6

Efficiency

High-resolution screen and terminal ST6/STM6, with multi-screen and layout objects (Dock Panel) functions, combine more information in one page facilitating easy operation.

Flexibility

3 types of models to meet your needs- Basic HMI, Basic Web HMI, and Basic Modular HMI.

Digitization

Remote visualization of HMI application with Web Viewer feature and OPC-UA server communication to connect OT to IT.

Protection

End-to-end cyber security including remote connections.

Features


Facts about Harmony ST6

• High-resolution screen powered by EcoStruxure Operator Terminal Expert software, with multi-screen and layout objects (Dock Panel) functions, to combine more information in one page for easy operation.

• Tool-free fastener for fast and easy mounting.

• Ability to access all HTML5 servers with Basic Web HMI, Harmony STW6 version.

• Availability of Web Viewer function on Harmony HMIST6 and HMISTM6 versions that allows remote visualization of the HMI application on PC/Tablet/Smartphone.

• Basic HMI, Harmony ST6, and STM6 with the best-in-class user interface for multi-device connection: 2 x Ethernet ports with Dual IP, 2x COM (except 4” model)/USB host, and device.

• Basic Web HMI, Harmony STW6 with 2 x Ethernet ports with one IP address for daisy chain connection (except 4'' model).

• Enhanced cybersecurity from application to firmware level.

• EcoStruxure Secure Connect Advisor, pre-installed on Harmony HMIST6 and HMISTM6 versions, for secure remote maintenance of HMI and connected devices.

• Edge Box HMI is an affordable Box to get ready for Cloud Service with EcoStruxure Machine SCADA Expert software.
