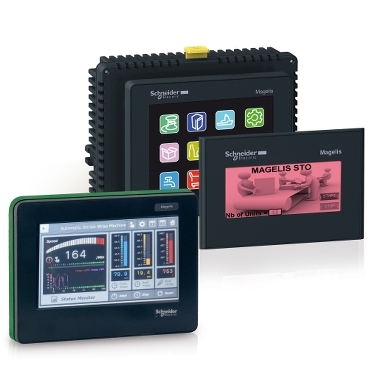

Harmony STO terminals powered by EcoStruxure Operator Terminal Expert and Harmony STU terminals powered by Vijeo Designer, adapt to your needs by integrating the latest technology innovations to enhance the productivity of your machines:

• Unique software configuration

• Power supply 24 VDC

• Serial ports RJ45 RS485/232 multiprotocol

• Mini-USB port, Memory Stick, USB keyboard

Harmony STO

• Touch screen 3.4’’, 200 x 80 pixels, 2 versions 3 colours (green, orange, red) or (white, pink, red)

• Tool free mounting with Spring Clips

Possible communication :

• Serial port

• Zelio link

• Ethernet

Harmony STU

• High definition colour screen TFT QVGA 3.5’’ and 5.7”

• Tool free mounting, using the Schneider Electric « push button system diam. 22 »

• Ethernet port RJ45 10/100 Base T

Benefits

A new generation of Small Panels

• Revolutionary mounting

with Spring clips for the STO and a “push button” system for the STU

• Communicative

Equipped to communicate with the Schneider Electric as well as third-party products.

• Cost-effective

Both, fast mounting system and unique software, contribute to cut down the global cost of your installation

Applications

• Simple Machines

• Infrastructures
