About

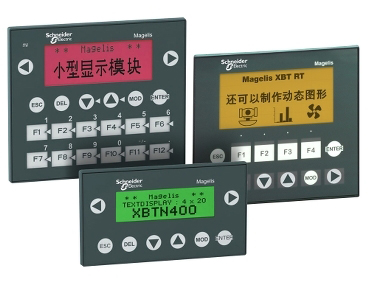

Magelis XBT N, R, RT

Monochrome HMI panel with keypad

Part of Harmony

Powered by Vijeo Designer Lite, this Magelis range provides operators enhanced text and image display, utilising graphic objects for display flexibility.

Features

High visibility display

• Display units with 1 to 4 lines, 5 to 20 characters

• Large-size characters

• 3-colour back lighting (green, red, orange)

• Looped text scrolling

Open to international applications

• Multiple languages: ASCII, Cyrillic, Greek, Japanese and Chinese

• 128 customisable characters

• Text import/export for translation

• Number of languages for your application limited only by the memory of your Magelis XBT

Ergonomic

• Large choice of user interfaces

• Touch screen/keypad or keypad only

• 8 to 20 keys

• Customisable and configurable key using sets of labels

Simplicity

• Only one software for the entire compact range: Vijeo Designer Lite

• Minimum size

• Easy to integrate, to assemble and wire

To optimise your machines, a direct link between Zelio logic and Magelis XBTN ensures you benefit from all the HMI functions.

Benefits

Deliver big things with these small panels

The Magelis XBT N, R, RT range brings you convenience and ease of use, with a compact product, touch screen features and semi-graphic display suitable for small machines. Display text messages, utilize semi-graphic screen, perform diagnostics, control and adjust your control system devices and deliver big things for your business.

Applications

• Simple and compact machine builders.
