Variable Speed Drive for conveyors, cranes or mills up to 2600 kW
Part of Altivar

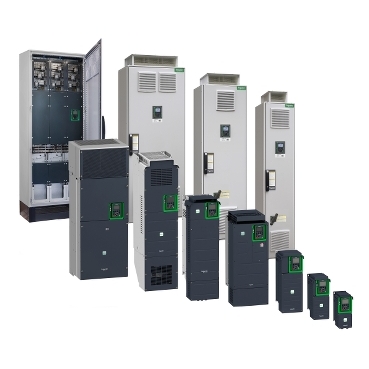

Altivar Process ATV900 Drives with embedded services, high performance motor control, safety and application functionality to meet demanding applications including conveyors, cranes, mills and more in the Process Industry. Ideal for segments such as Mining & Metals, Oil & Gas, Food & Beverage and Hoisting, from 0.75 kW to 2600 kW..
Discover Altivar Process ATV900
 |
About Altivar Process ATV900The next generation of variable speed drives, Altivar Process is designed to deliver IIoT benefits. A smart, connected EcoStruxure-ready Drive with built-in intelligence to gather data and share information to the enterprise level, the Altivar Process can improve operational efficiency, profitability and reduce total cost of ownership (TCO). As the only range on the market providing a common platform from 0.75 kW to 2600 kW in all voltages, Altivar Process is easy-to-use with a consistent experience for usability, functionality, and performance, and the added value of peace of mind and flexibility delivered through Drives Services. Designed to assist OEMs, system integrators, and industrial process owners, Altivar Process drives improve process performance by enabling full information and operational technology convergence. |
Benefits of Altivar Process ATV900
 |  |  |  |
|||
Process optimization Bring intelligence to your system by enabling your assets to provide advanced process data for smarter operations. | Enhance equipment effectiveness Improve productivity and availability by up to 20%. | Energy management Optimize and reduce your energy consumption by up to 30%. | Asset management Reduce downtime and maintain the performance of your main assets. |
Features
|
Technical Details • Power range: 0.75 kW to 2600 kW • Voltage range: 200 – 400 – 690 V Three-phase • Motor type: Induction, PM, Reluctance, IE2-IE3-IE4 motors • Motor control type: Open-loop • THDI: THDi < 48%(Embedded), THDi<10% or THDi<5% with Passive filter or multi-pulse supply, THDi<= 3% with Low Harmonic module • Safety: STO - SS1, SS2, SOS, SLS, SMS, SBC, SDI (SIL3 Ple) Embeded functions • Master-slave load sharing • Hoisting management • High accuracy torque control • Embedded dual-port ethernet • Advanced safety • WebServer — DHCP with native EtherNet • Adaptive Cascade Vector Control - ACVC • Fast Device Replacement • Energy monitoring with current sensor • Achilles L2 cyber-security • High-speed hoisting • Brake logic control • Rope slack handling • DC injection for fast stop • IGBT monitoring Communication Protocols • Embedded: Ethernet, Modbus • Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink Applications • Hoisting • Artificial lift • Extruders, crushers • Conveyors, mills • DC Bus sharing/ 4 Quadrant applications |
