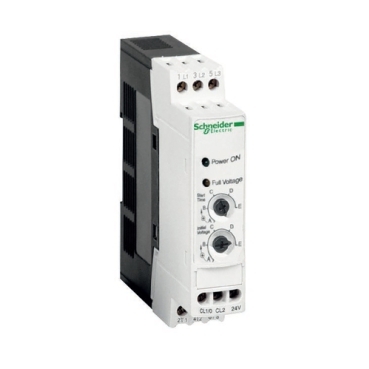

About Altivar Soft Starter ATS01

The Altivar Soft Starter ATS01 operates as a soft start/soft stop unit for asynchronous motors. It enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner.

It helps to prevent mechanical shocks, which cause wear and tear, and subsequent maintenance work and production downtime.The Altivar Soft Starter ATS01 is compact, easy to install, and can be mounted side-by-side.

Your starting solution

Enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner.

Easy to install

Extremely compact, the Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency.

Operation optimization

Reduced machine wear and minimized maintenance time.

TeSys®U combination

Together with TeSys Model U, you will have the benefit from a unique motor starter solution.

Specifications

      • Designed for 1-phase and 3-phase AC motors and simple machines

      • Minimum dimensions (22.5 mm/45 mm width)

      • Quick and easy set-up

     • Suppression of torque surges at startup

      • Limitation of current peaks

      • Suppression of voltage drops

      • Side-by-side mounting

      • Adjustable starting and deceleration times: 5 seconds or 10 seconds

      • Adjustable unjamming torque

      • Integrated bypass contactor

      • Simple dialogue by 2 LEDs

      • Signalling on completion of starting

      • 24 V integrated power supply (ATS01N2...)

      • “Boost” function for difficult starting conditions (ATS01N2...)

Functions

      • 2-wire control

     • 3-wire control

      • Starting time

      • Voltage boost function via logic input

      • End of starting

Scope

      • Conveyors

      • Conveyor belts

      • Pumps

      • Fans

      • Compressors

      • Automatic doors and gates

      • Overhead Traveling Cranes (Horizontal Loads)

      • Small cranes

      • Belt-driven machinery

Applications

      • machinery

      • Water and Waste Water

      • Food & Beverage
