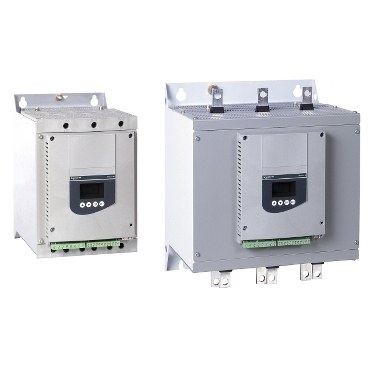

About Altivar Soft Starter ATS48

The Altivar Soft Starter ATS48 unit is a controller with 6 thyristors used for torque-controlled soft starting and stopping of three-phase squirrel cage asynchronous motors, for power ratings between 4 and 900 kW.

It offers soft starting and deceleration functions along with machine and motor protection functions, as well as functions for communicating with control systems.

Cost-effective solution

Reduce mechanical stress and improve machine availability.

Easy integration

Designed to be integrated into enclosures and control systems.

High performance

Torque Control System (TCS) to control starting and deceleration.

Integrated protection functions

Built in thermal protection for the motor, as well as protection against underloads and overcurrents in a steady state.

Specifications

      • Starting and stopping of the machine by the Altistart 48 torque control system (TCS patent: Torque Control System)

      • Thermal protection of the motor

      • Protection of the machine: underload and overload with adjustable threshold and times, locked rotor, rotation direction control

     • Factory set for immediate start-up

      • Simplified customization of settings using built in display or the PowerSuite software

      • Through connection

      • Control of starter bypass contactor to prevent heat dissipation

      • Dual configuration (2 motors)

      • Numerous configurable inputs/outputs

      • Cascaded starting and deceleration of a number of motors

      • Modbus Integrated, FIPIO, PROFIBUS DP, DeviceNet, Ethernet

Functions

Altistart 48 delivers:

      • High performance with its Torque Control System (TCS) for controlled starting and deceleration

     • Easy integration in enclosures and control systems

      • Continual improvement of your machine operation by reducing mechanical or hydraulic stress and limiting energy loss and temperature rise, plus more

Taming energy

      Altistart 48 offers you the benefits of its patented Torque Control System (TCS). Ready for immediate start-up, with simplified wiring and extended communication functions, it can be integrated at the heart of your applications in complete simplicity.

Scope

      • Pumps

      • Fans and high inertia machines

      • Compressors

      • Conveyors

Applications

      • Water and Waste Water

      • Food & Beverage

      • Mining Minerals and Metals

      • Energies and Chemicals
